OLYMPIC 135 COMPASS

Plastimo

Ref: 65529

Sailboats 9 m and above (30 ft+).
Flushmount compass for steering console or steering wheel pedestal, with or without binnacle.
Large flat card, ideal when steering standing.

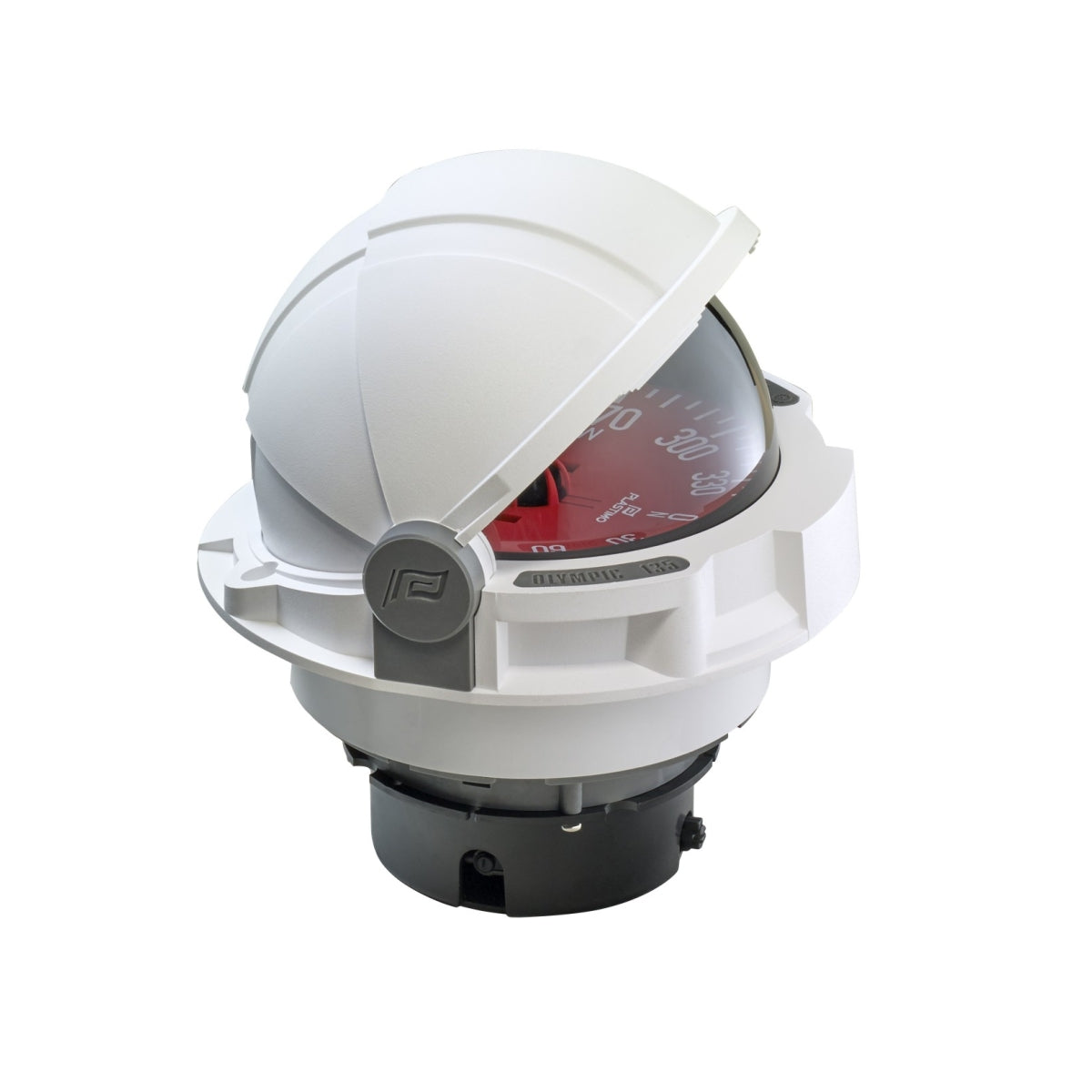

Articulated protective hood in 3 sliding parts.
SOLAS-MED approved: equally suitable for professional fishing boats and commercial vessels.

Model

BLACK compass + white binnacle BLACK compass, no binnacle WHITE compass + white binnacle WHITE compass, no binnacle

Card

Black card Red card

Mounting

On pedestal Flushmount or Pedestal

€267.50

Oferta Agotado

excl. VAT

mar

Feature	Description
Boat size	Sailboat 9 m and above (30 ft+)
Card	Flat card, graduated every 5°, apparent Ø 130 mm. Heading numerals every 30°.
Protective hood	Unique articulated protective hood : built-in sliding cover, composed of 3 telescopic parts.
Mounting	Pedestal mounting or minimal height flush mounting. Choice of 2 binnacles (96 mm high), pedestal Ø 175 mm.
Lubber lines	3 lubber lines, at 45°.
Compensation	Supplied as standard.
Lighting	12-24 V LED.
Supplied with	Drilling template.
Homologation	SOLAS-MED 96/98
